Electrically Heated Hoses

P.E Heated Hoses Ltd, are in the ideal position of being able to electrically heat, any type of flexible hose, whether we offer a complete solution for your application, or Free Issued by our customers.

Bespoke Heated Hose Build

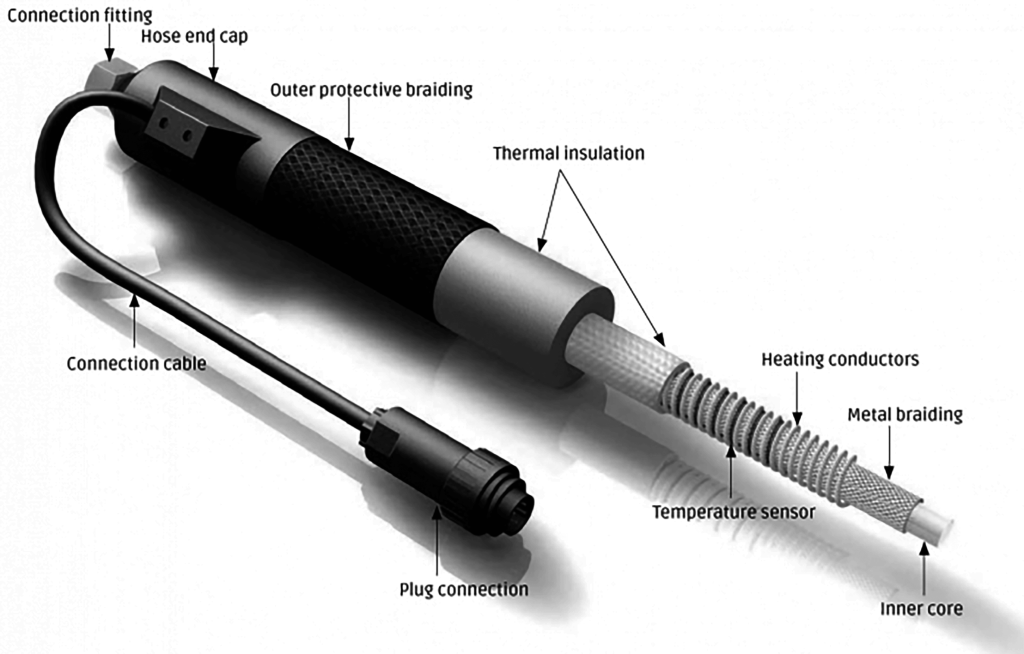

The labeled diagram is typical of the bulk of heated hoses that we undertake. We do, however, pride ourselves on our individual service and our objective approach to each customer’s particular needs, therefore try not to describe any particular construction as a standard heated hose but offer a range of variations to suit each application.

The diagram also refers to a particular state of fabrication achieved at the present time. As a progressive and innovative company, we are always looking at new improvements in both materials and techniques, and so we would reserve the right to amend or modify any of the above in light of continuing development.

Specifications

Length: Manufactured to desired specification.
End fittings: A variety of swaged fittings to suit most pipe thread systems, supplied in a range of materials.
Bore size: Sizes to suit customer’s specifications can be supplied.
Pressure Ratings: Wide range of pressure rated hoses to suit your application.
Temperature sensor: PT 100 and Thermocouple types of sensor can be supplied. other types may be available, by prior consultation.
Heater: The heating element is insulated with a layer of silicone rubber for moisture protection. Hazardous Area elements are also available.
Thermal insulation: Layers of glass fibre insulation.
Outer options: Black polyamide sleeve braiding or wash down heat-shrink.
End caps: Moulded silicone rubber caps are used exclusively.
Voltage: To customers requirements.
Electrical/Options: The temperature sensing and heating wires are standard, but additional wires and/or tubes can be incorporated into any build, if necessary, to control customer operation or to feed additional equipment.

Extensive guarantee

All heated hoses are built to our well-proven design, using our purpose-developed equipment at our own factory in the West Midlands. We operate strict quality control at all stages, and all our heated hoses are fully tested and guaranteed for twelve months.

Although we have built up a fund of experience, all our heated hoses are treated as specials, and they are designed to suit individual requirements and equipment.

We pride ourselves on our quick response, as heated hoses can be built, tested, and delivered within days rather than weeks.

All our heated hoses MUST be connected to a suitable temperature controller, otherwise damage will occur. Temperature controllers for all types of applications can be specified and supplied, either with the heated hoses or separately.

If you need any more information about any of our products, please fill out our enquiry form or email us directly on sales@pegroup.ltd. Alternatively, you can call us at the number below.
